Home > products > Advertising Textiles > Underground Subway LED Light Box Backlit Textile 170gsm Fabric Roll

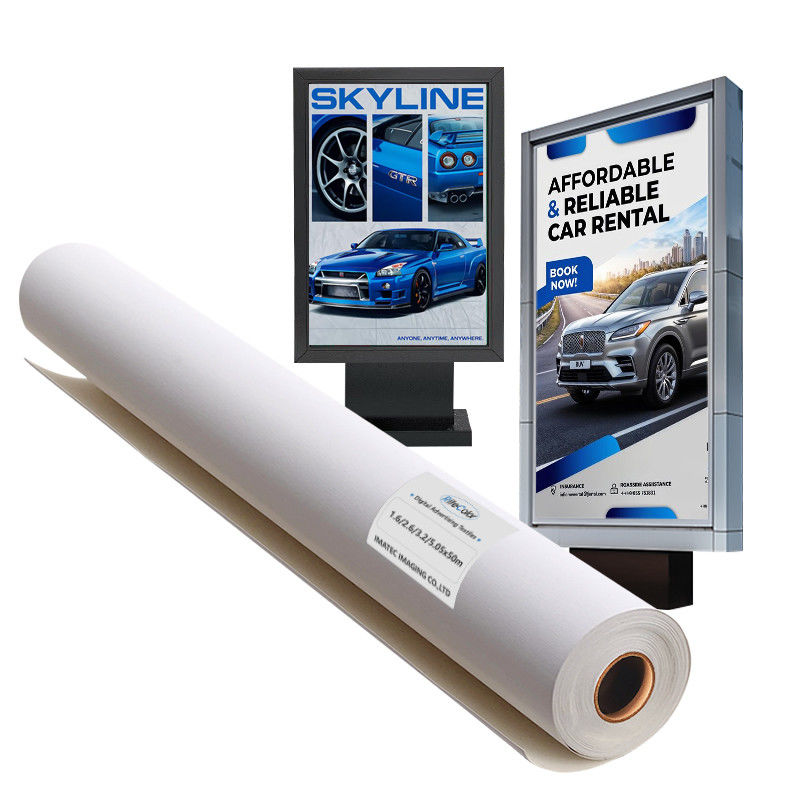

Underground Subway LED Light Box Backlit Textile 170gsm Fabric Roll

Product Details

Place of Origin: China

Brand Name: Ritecolor

Certification: ISO9001

Model Number: IM-F31-SB

Payment & Shipping Terms

Minimum Order Quantity: 500m

Price: Negotiation

Packaging Details: Neutral packing (without any supplier information), with 1 roll per box. Pallet packing

Delivery Time: 7-15 days

Payment Terms: D/P, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Cread Card etc

Supply Ability: 10000 Square Meter/Square Meters per Day

Get Best Price
Highlight:

170gsm Fabric Roll LED Light Box

,

Underground Subway LED Light Box

,

Backlit Textile LED Light Box

Features:
Eco Freindly, Waterproof, High Resolution Etc
Product Name:
Underground Subway LED Light Box Backlit Textile 170gsm Fabric Roll
Weight:
170gsm
Material:
100% Polyester
Compatible Ink:
Sublimation And UV Inks
Roll Size:
1.6/2.6/3.2/5.05 X 50m Etc.
Sample:
Yes, Sample Roll Is Avaliavle
OEM/ODM Service:
Yes
Packing:
1 Roll Per Box/tube
Application:
For Advertising Printing, LED Light Box, Frame System, Pop-up Etc.
Features:
Eco Freindly, Waterproof, High Resolution Etc
Product Name:
Underground Subway LED Light Box Backlit Textile 170gsm Fabric Roll
Weight:
170gsm
Material:
100% Polyester
Compatible Ink:
Sublimation And UV Inks
Roll Size:
1.6/2.6/3.2/5.05 X 50m Etc.
Sample:
Yes, Sample Roll Is Avaliavle
OEM/ODM Service:
Yes
Packing:
1 Roll Per Box/tube
Application:
For Advertising Printing, LED Light Box, Frame System, Pop-up Etc.
Underground Subway LED Light Box Backlit Textile 170gsm Fabric Roll

Underground Subway LED Light Box Backlit Textile 170gsm Fabric Roll 0



This is our 170gsm sublimation UV ink fabric backlit textile roll, widely used in LED light box, frame system, POP-up, tents etc. There are rough textile and fine textile for choice.



Coarse-grained light box cloth is a kind of inkjet material commonly used in outdoor advertising.



Printing method
1. Transfer ink (thermal transfer)
    Indirect printing: The ink is first printed on a special transfer paper.

    Heat transfer: The pattern on the transfer paper is transferred to the light box cloth through high temperature heat pressing (thermal transfer machine or heat press machine).

                            The ink penetrates and combines with the cloth fiber under high temperature and high pressure.



2. UV ink
    Direct printing: Use a UV flatbed printer or a roll-to-roll UV printer to print directly on the surface of the light box cloth.

    Instant curing: During the printing process, the ultraviolet rays emitted by the UV lamp instantly cure the ink to form a hard film.





Underground Subway LED Light Box Backlit Textile 170gsm Fabric Roll 1





Material
Polyester
Grams
170±10gsm
Support Inks
Sublimation & UV inks
Usual Size
1.6/2.6/3.2/5.05 x 50m etc.
Applications
For LED Light Box, Frame System, Pop-up, Tents etc.
Packing
1roll per box/tube
Features
Eco-friendly, waterproof, high resolution etc.
OEM/ODM
Yes, support packing, size etc



Features:



Transfer ink (thermal transfer)--Features on coarse cloth:



*Color vividness and saturation: Usually it can present very bright and highly saturated color effects. The ink performs well on the transfer paper,

                                                       and the color loss is relatively small after being transferred to the cloth, which is especially suitable for pictures that require high visual impact.



*Detail performance: The detail performance of highlights and light areas is usually better than UV direct printing, and the gradient transition is smoother and more natural.



*Fabric feel: After transfer, the ink penetrates into the fibers of the fabric, and the fabric maintains its original softness and texture. The ink layer is not obvious when touched. The rough texture is still clear.



*Light uniformity: Because the ink penetrates into the fiber, the light is scattered relatively evenly when passing through, the halo effect is better, and the picture is softer and more natural under lighting.



*Weather resistance: Usually has excellent weather resistance (anti-ultraviolet, anti-aging), especially some special high weather resistance transfer inks, which are very suitable for light boxes used outdoors for a long time.



*Adhesion: Through hot melt penetration bonding, the adhesion is very strong and long-lasting, and it is not easy to peel off or crack due to fabric expansion or environmental changes.

                  It is especially suitable for outdoor light boxes that need to withstand wind and rain.



*Ink layer thickness: The ink layer is relatively thin, and it is not easy to affect the light transmittance or produce a noticeable ink layer feeling due to ink accumulation.



Packing Way:



Underground Subway LED Light Box Backlit Textile 170gsm Fabric Roll 2
Underground Subway LED Light Box Backlit Textile 170gsm Fabric Roll 3

Related Products:

Code
Product Name
Weight
Usual Size
IM-F31-SB
Sublimation Backlit Textile 170gsm
170±10gsm
1.6/2.6/3.2/5.05x50m
IM-F31-CB
Coated Backlit Textile 180gsm
180±10gsm
1.6/2.6/3.2/5.05x50m
IM-122-S
Solvent Flag Textile 160gsm
160±15gsm
1.27/1.52x50m
2.6/3.05x50m
IM-S01-2B
Backdrop Textile 260gsm(black back)
260±15gsm
1.6/2.6/3.2x50m
IM-S01-5B
Backdrop Textile 235gsm(black back)
235±15gsm
1.6/2.6/3.2x50m
IM-S08-GY
Solvent Greyback Fabric 300gsm
300±20gsm
1.2/2.5/2.8/3.2x50m
IM-S01-2B
Backdrop Textile 260gsm(black back)
260±15gsm
5.05x50m
   IM-S34-N

  Texture-Knitted Whiteback Fabric       245gsm



  245±15gsm   5.05x50m
IM-E01-4
Tent Fabric 270gsm
270±20gsm
2.28x100m,1.6x2500m,
2.2/2.6/3.2x2800m
